Space 98 viewgraphs

raw notes   placed at neofuel.com 6 nov 98 zuppero


title page  W are going to take water off the moon
and put it into orbit.
     - drammatic increase in amount of propellant or
           rocket fuel, in the space around earth itself
    -   will show how, in your carrer lifetime
        why factor of 1000 seems to persist
           - mass is free
           - simplicity
           - use only thermal processes
           - no electrolysis
           - tanks
           -  simplicity
     - use moon ice to fuel a steam rocket
     - Lunar Prospector
     - use a nuclear reactor to energize a steam rocket
     - depends entirely on abundantly accessible lunar  ice
           might not be so, with only 1% in regolith

One question that should totally change your view of

space transportation.

Question: if you have all the mass in space
        for propellant
that you want,

     UNLIMITED MASS,

but you have only

     LIMITED ENERGY,

     (such as the maximum power the solar or nuclear
     heater will supply for the allowed duration of the
     maneuver)

then
should you put the energy into

     ? smallest possible mass?
     ? medium?
     ? largest possible mass?

I will answer the question at the end of the
presentation.


VG #1 architecture:

Reaon #1: mass is free: water ice

moon ice, melt ice, condense it, put into tank

     2.4 Mwatt thermal nuke electric generator
     21 kilotons per year melted
     200 KW electric to dump

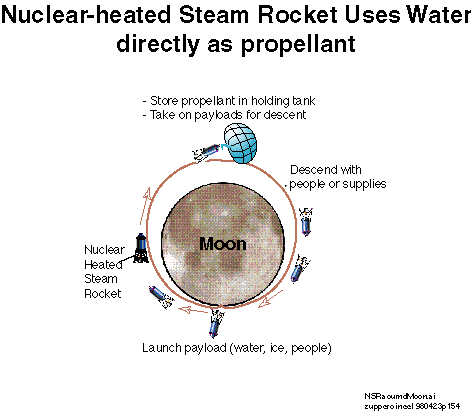

VG#2 around the moon, Ice Station

Reason #2: thermal processes only, melt, boil
  - take off from lunar surface, into low lunar orbit
  - decant payload
  - return to do it again.

  - 6 tons water per ton to Lunar Escape, 4 to LLO

key elements:
   - lift off from the lunar surface.

necessary element:
   - melt ice



VG#3 steam rocket

steam rocket with water tank like any engine, diesel, car: once on, it's
on: hot steam runs turbo-pump compressor to feed water in

Reason 3: Tank:

200 tons per ton completely reasonable

PBO polybenzoxazole, 700 Kpsi Yield

JPL, Lewis, Cal Tech

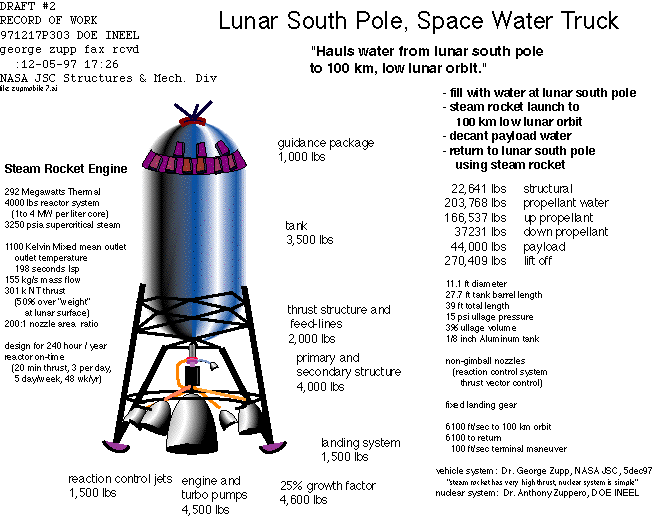

VG #4 Zuppmobile

     20 tons to orbit. People, water, space ship parts.
     Supercritical presure desired, not needed we think. Ludewig says
     now unclassified that PBR demonstrated 3 MW/l at 1 atm.



VG #5 plot Power vs Isp

lift off: sufficient thrust

     nuclear heated steam rocket can just barely do it well
     temperature of steam == specific impulse == specific velocity
     power of rocket
     must be minimum performance, or can't do it.

too low a specific impulse and launch mass

=== too large,

huge power required.

too high a specific impulse and

=== thrust is too low, scales inverse with Isp, Vsp

huge power required.

just right and power is minimum

fortunate coincdence of nature:

steam works.

Power Per Mass

     reactor must develop 150 gto 200 megawatts per ton of reactor.
     3 megawatts per liter, 65 times that of a race car.
     1/5 that of an RL-10 chemical rocket
     Ludewig can 2 X confidently, 10 X claim

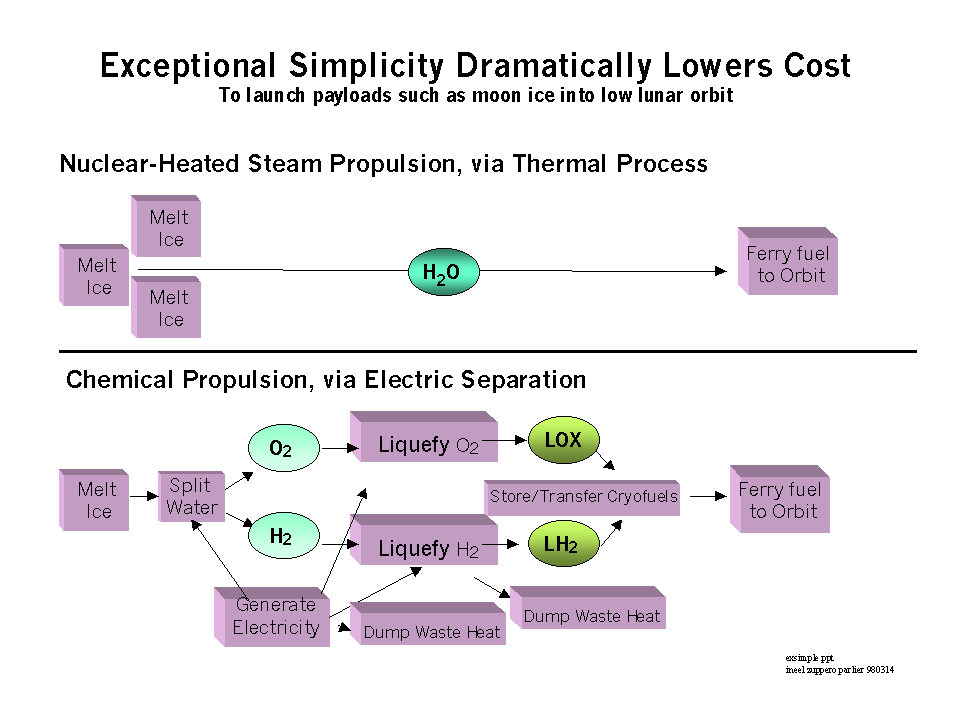

VG#6 Exceptional Simplicity

Reason #3: simplicity

electric generators, kitaldo kitell data

massive

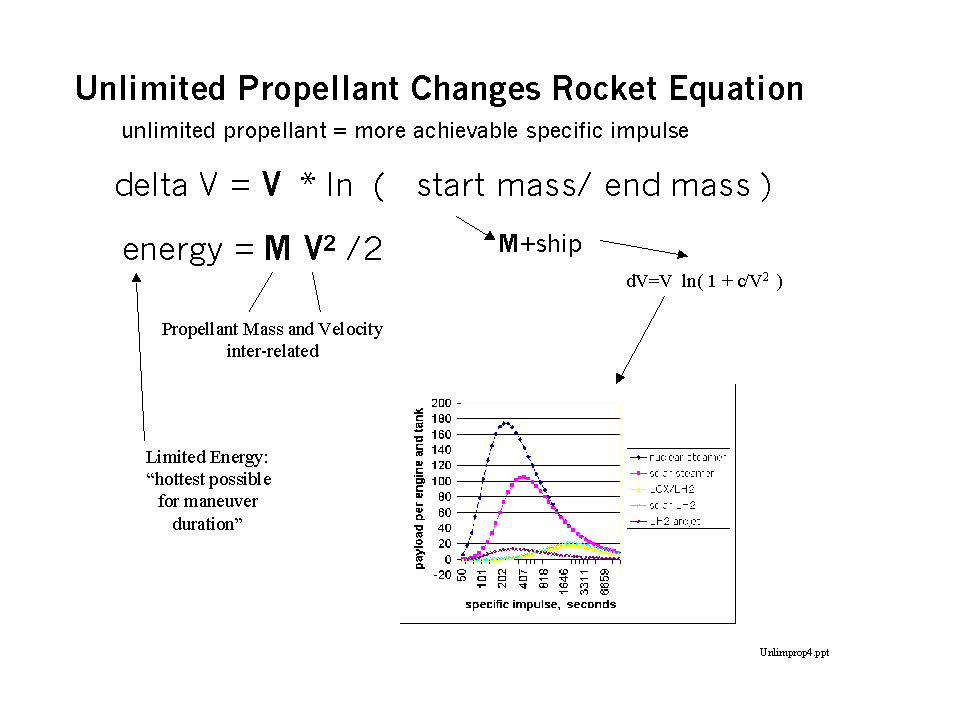

VG #7 Medium Mass is answer   see http:/'/infoshare.inel.gov/zuppero/public_html/Optimum_Rocket/
